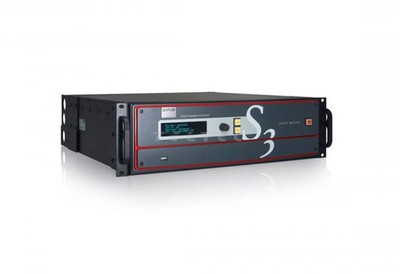

S3­4K series - Compact 4K screen management systems

12 inputs via 3 input cards (same cards as E2 Event Master Processor)⋅ Up to 3 x 4K inputs ­ each input card supports up to 4K@60p
⋅ 4 x SD/HD/3G SDI (6G ready)
⋅ 4 x HDMI 1.4a (297 Mpix/sec max)

⋅ 4 x DisplayPort 1.1 (330 Mpix/sec max)

10 outputs via 3 output cards (same cards as E2 Event Master Processor)⋅ Up to 2x 4K outputs ­ each output card supports up to 4K@60 p
⋅ 4 x SD/HD/3G SDI (6G ready)
⋅ 4x HDMI 1.4a (297 Mpix/sec max)

⋅ 2 x HDMI 1.4a for Multiviewer (297 Mpix/sec max)

Analog reference input/loop on BNC connectors; bi­level and blackburst at SD and tri­level at HD
S3D Sync: 4x input Din connector, 2x output Din connector

4 program outputs configurable as single screens or tiled/blended widescreens ⋅ Configurable from 4X 2048X1200@60 max to 1 x 4096x2400@60 max
⋅ Independent edge blending/feathering control for all four sides

User definable from 4 x 2048x1200@60 to 1 x 4K@60 Output color correction

  •  Native resolution background mixer per output screen

  •  Independent layer transitions or full Preview/Program transition

  •  Flexible layer allocation – 4 scalable PIP/key layer mixers assignable to any

    Program output screens Available in background or PIP

  •  Borders (hard, soft, halo) and drop shadows

  •  Color effects

  •  Strobe, H&V flip

  •  Luma key

  •  PIP moves via Keyframes

  •  Flexible user­definable layouts

  •  Monitor all Inputs and Outputs, including Preview and Aux

  •  Two outputs

  •  Dedicated hardware same as E2 Event Master Processor

  •  Easily expandable for larger display applications via proprietary links

  •  Link units to increase available Inputs and Outputs for larger tiled/blended

    widescreen applications

  •  Expansion via simple linking ­ up to 4 chassis

  •  S3­4K ships with the ability to link 2 chassis for expansion. Linking up to 4

    chassis will be available in a future software release. HDCP compliant
